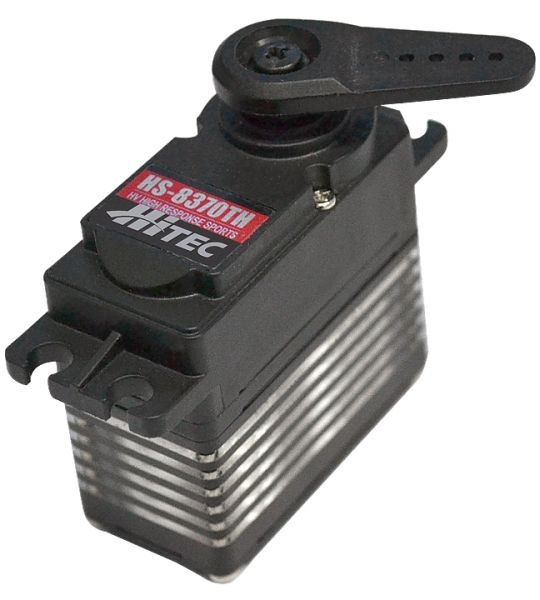

HITEC HS 8370 TH SERVO HV HIGH RESPONSE MULTIPURPOSE 18KG 0.12 SEC 68GR

The versatile, multipurpose functionality of the HS-8370TH will have all radio control enthusiasts clamoring for more. Robust titanium gears, ultra-efficient coreless motor, high resolution, non-programmable digital circuits make this swift, responsive servo incredibly durable and amazingly reliable. Install the HS-8370TH in everything from your 35% sport plane to your 700+ size heli to your 1/8th short course truck - no matter what application, it gets the job done.

Features
High Resolution Ultra Response Non-Programmable Digital Circuit
Efficient Coreless Motor
Durable Titanium Gears
7.4v 2-Cell LiPo Capability
Industry Standard 25 Tooth Spline (Fut. Compatible

Applications
Helicopters 700+, 1/8th Scale Short Course Trucks, 1/8th Scale Buggies, Truggies and Monster Trucks

Specifications

Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.12 / 0.10 second
Torque oz./in. (6.0V/7.4V): 250 / 319 oz-in
Torque kg./cm. (6.0V/7.4V): 13 / 16 kg-cm
Size in Inches: 1.57" x 0.79" x 1.50"
Size in Millimeters: 40 x 20 x 38 mm
Weight oz.: 2.4oz.
Weight g.: 68g.

Advanced Servo Specifications

Control System: HR Ultra Response Non-Programmable Digital
Operating Voltage Range: 4.8 - 7.4 vDC
Operating Temperature Range: -4° to 140° F (-20° to 60° C)
Idle Current: 10 mAh
No Load Running Current (6.0V/7.4V): 470 mAh
Stall Current (6.0V/7.4V): 5800 mAh
Dead Band Width: < 1 µsec
Potentiometer Type: 4 Slider Rated @ 1M Cycles
Connector Wire Length: 11.8 in. (300mm) Flat
Connector Wire Gauge: 20 AWG 80 Strand
