HPI 10830 WHEELY KING 4WD RTR DISCONTINUADO

This is the 1/12 scale, electric powered, radio controlled, ready-to-run
HPI Wheely King Four Wheel Drive Monster Truck.

FEATURES: Chassis: TVP (Twin Vertical Plate) plastic tube frame design with
rear wheelie bar
Drive: Four wheel shaft drive
Motor: 540 size 27 turn
Radio: HPI TF-1 27MHz AM 2-channel pistol grip with steering and
throttle trim and reverse, one standard steering servo and HPI
reversible speed control
Battery: 7.2V, 1500mAh NiCd 6-cell stick pack with standard connector
Battery Charger: 120V wall type, charges in six hours
Ball Bearings: Full set included
Shocks: Four plastic bodied
Transmission: Single speed
Suspension: Front and rear solid axles with pivot arms, 6\" (152mm) of
suspension travel for all-terrain driving
Wheels: Chrome 2\" (51mm) diameter, 2.2\" (56mm) wide
Tires: 5.3\" (135mm) diameter, 2.75\" (70mm) wide Mud Thrasher
Body: Prepainted and trimmed with decals
Caster: Non-adjustable
Camber: Non-adjustable
Warranty: Two year

INCLUDES: HPI Wheely King 4WD Monster Truck with motor, painted body, AM radio,
ESC 27T motor, 90T spur gear, 21T pinion gear, 6-cell stick pack,
wall charger, instructions

REQUIRES: AA Batteries: 8 for transmitter

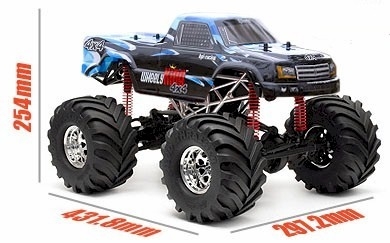

SPECS: VEHICLE-
Length: 17\" (432mm)
Width: 11.7\" (297mm)
Height: 10\" (254mm)
Weight: 4.4lb (2015g)
Wheelbase: 9.4\" (239mm)
Front and Rear Tread: 9.1\" (231mm) side-to-side at wheel centers
Front and Rear Track: 11.5\" (292mm) side to side at outer edges of
wheel
Ground Clearance: 2.2\" (55mm) at lowest point
Suspension Travel: 6\" (152mm)
BODY-
Length: 15.3\" (390mm)
Width: 5.9\" (150mm) ahead of front wheels narrowest point
Width: 6.5\" (165mm)
Height: 4.3\" (109mm)_

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
4 5x11mm Front Wheels 2 DTXC1547
4 5x11mm Rear Wheels 2 DTXC1547
4 5x11mm Gearbox 2 DTXC1547
2 10x15mm Gearbox 1 DTXC1595
The Wheely King is available on the following radio channels;
A1 HPID83A1
A2 HPID83A2
A3 HPID83A3
A4 HPID83A4
A5 HPID83A5
A6 HPID83A6

Also available in two wheel drive version, HPIC1082.



ACCESSORIES

THIS IS THE ELECTRIC POWERED 1/12 SCALE HPI 4WD WHEELY KING MONSTER TRUCK.
FEATURES: 540 27T MOTOR, ESC W/REVERSE, TVP CHASSIS, F&R SOLID AXLES, FULL BALL
BEARINGS, CHROME WHEELS, MUD THRASHER TIRES, PAINTED BODY, OIL FILLED PLASTIC
BODIED SHOCKS, QUICK CHANGE BATTERY SLOT
REQUIRES: 8AA BATTERIES FOR TRANSMITTER, TRACK EQUIPMENT
