DURATRAX 1070 I-SPEED 12T MODIFIED REV ESC

Código Mirax: 62638

Compartir

Precio: $ 61.800 (IVA incluido)

Producto en Stock en tienda y para ventas online

Pagina web del fabricante: Web Fabricante





Recomendar este producto a un amigo

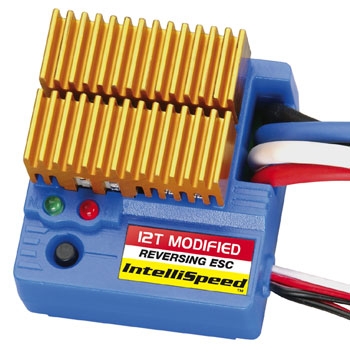

This is the Team DuraTrax I-Speed Modified Forward and Reverse Electronic Speed Control with a Futaba J connector. FOR MODIFIED MOTORS DOWN TO 12 TURNS ONLY! ABS Braking for better control in and out of corners, and adjustable reverse-delay, reverse-lockout, and traction control.

*** 120 Day Limited Warranty ***

FEATURES: Forward and Reverse and ABS Braking. Excellent for intermediate to advanced racers. Easy Pushbutton Setup. Thermal Protected. More efficient than mechanical Speed Controls. Reverse Lockout (see COMMENTS). LED ( Forward and Red-Full Speed, Red and Green-Reverse). Pre-Installed Futaba J Connector. Pre-Installed Bullet Type Connectors For Motor. Standard (Tamiya Type) Connector For Battery Pack. ON/OFF Switch. BEC Equipped.

INCLUDES: One I-Speed Forward/Reverse Electronic Speed Control with Futaba J Connector and Bullet Motor Connectors. Three .1 Type Capacitors. One Instruction Sheet

SPECS: ON-Resistance: 0.0035 Traction Control: 0.0, 0.1, or 0.2 Reverse Delay: 0.3 or 0.8 Maximum Continuous Current: 232A Maximum Peak Current: 800A Number of Cells: 6-7 Size with Heatsinks: 1.48"L x 1.34"W x 0.57"H Weight with Heatsink: 2.44 ounces Connector: Motor: bullet Battery: standard (Tamiya) Motor: 12 Turn Modified Wires: 14 gauge

REQUIRES: Installing Three .1 Type Capacitors Onto Motor with Solder Installing onto an Electric Vehicle 6 or 7 Cell Battery Motor (12 Turn or Above)

COMMENTS: The manual states that during the reverse delay/lockout procedure, the ESC will flash just the red LED light a series of times. This is a typo. The ESC flashes both Red and Green LEDs during this setup procedure.

kh2-21-02 Updated JPG 4/10/02 ir/kh Updated cmc 2/17/04
